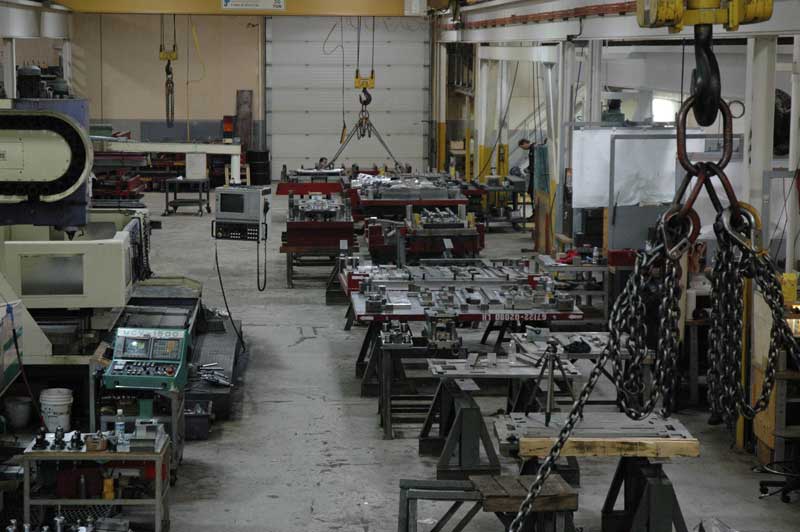

General Information
- 40,000 Sq. Ft. Plant
- One drive in door and two loading docks with shipping open to 6:00 pm
- Thirty tool makers with extensive experience in building tooling for the automotive, commercial and industrial sectors.
- Three overhead cranes with 150 feet of track that cam move over shipping area in order to remove/load heavy items from open bed trailers or move and open large dies.
- Crane capacity up to 30 tonnes
- One Mitutoyo BRT 504 (191-208) CNC Co-ordinate Measuring Machine
- Latest Design Software for die designing, EDM and CNC (CADKEY, Master CAM CNC, Master CAM EDM, Visi, Work NC etc.)
- With all programming as well as completing all CNC and EDM work in-house, a high level of quality is maintained and assured. All program files are stored for future reference in case they are ever needed again.
| Press Make |
Tonnage |
Bolster |
Min Shut Height |
Max Shut Height |
Max Coil Weight |
Max Coil Width |
Max Thickness |
Stroke |
| Verson |
1400 |
180"x72" |
34.000" |
42.000" |
40,000 lbs |
54.000" |
0.156" |
16" |
| Danly |
1000 |
165"x84" |
29.000" |
54.000" |
40,000 lbs |
65.500" |
0.188" |
30" |
| Clearing |
1000 |
144"x84" |
37.000" |
56.000" |
40,000 lbs |
72.000" |
0.188" |
28" |
| Bliss |
800 |
132"x84" |
26.500" |
54.000" |
20,000 lbs |
44.000" |
0.250" |
18" |
| Clearing |
500 |
120"x72" |
22.500" |
36.000" |
15,000 lbs |
45.000" |
0.250" |
24" |
| USI Clearing |
400 |
108"x54" |
22.000" |
30.125" |
10,000 lbs |
30.000" |
0.250" |
16" |
| Blow |
400 |
96"x48" |
12.000" |
23.875" |
10,000 lbs |
28.000" |
0.188" |
8" |
| CMC Bliss |
400 |
84"x48" |
16.125" |
26.000" |
10,000 lbs |
24.000" |
0.188" |
12" |
| Clearing |
300 |
108"x60" |
23.000" |
50.000" |
Hand Transfer |
|
|
30" |
| Bliss |
300 |
96"x60" |
9.000" |
23.25" |
10,000 lbs |
36.000" |
0.188" |
16" |
| Verson |
300 |
96"x60" |
17.250" |
25.25" |
10,000 lbs |
25.500" |
0.200" |
18" |
| Verson |
300 |
96"x48" |
17.000" |
24.50" |
10,000 lbs |
24.000" |
0.125" |
18" |
| USI Clearing |
300 |
144"x72" |
12.250" |
24.25" |
20,000 lbs |
60.000" |
0.125" |
12" |
| Danly |
300 |
60"x48" |
20.000" |
32.000" |
Hand Transfer |
|
|
12" |
| Blow |
250 |
60"x40" |
10.000" |
20.000" |
6,000 lbs |
14.000" |
0.188" |
10" |
| Clearing |
200 |
108"x48" |
19.500" |
42.500" |
Hand Transfer |
|
|
14" |
| Niagara |
200 |
72"x48" |
10.375" |
20.250" |
6,000 lbs |
20.000" |
0.188" |
8" |
| Niagara |
165 |
50"x30" |
10.500" |
16.500" |
6,000 lbs |
25.000" |
0.188" |
6" |
| Blow |
125 |
34"x34" |
12.000" |
16.000" |
Hand Transfer |
|
|
8" |
| Brown Boggs |
110 |
42"x27" |
10.000" |
13.750" |
6,000 lbs |
12.500" |
0.188" |
6" |
| Niagara |
100 |
39"x25" |
11.250" |
15.750" |
6,000 lbs |
18.000" |
0.188" |
4.5" |
| Bliss |
100 |
72"x30" |
11.250" |
14.50" |
6,000 lbs |
25.000" |
0.188" |
4" |
| Warco |
100 |
39"x30" |
8.000" |
13.250" |
Hand Transfer |
|
|
6" |
| Brown Boggs |
80 |
36"x26" |
8.000" |
12.50" |
5,000 lbs |
12.500" |
0.188" |
6" |
| Warco |
350 |
84"x48" |
20.400" |
25.25" |
Robotic Tranfer |
|
|
12" |
| AIDA |
275 |
68"x48" |
17.000" |
21.250" |
Robotic Tranfer |
|
|
12" |
| Verson |
250 |
72"x48" |
22.250" |
30.25" |
Robotic Tranfer |
|
|
16" |

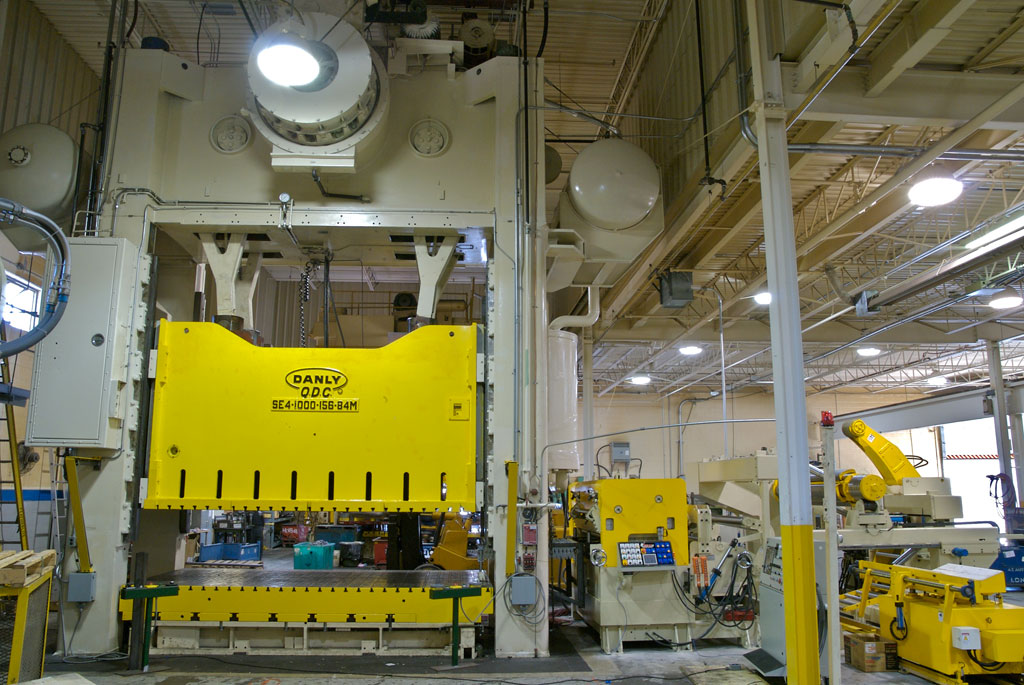

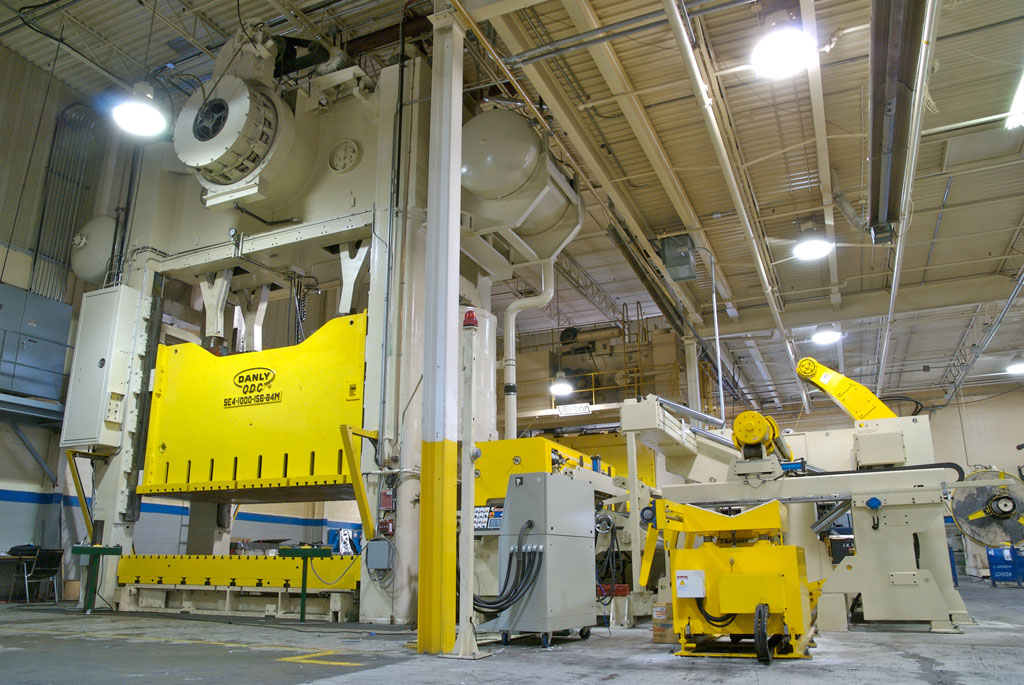

Danly 1000 Ton Press
Danly 1000 Ton Press

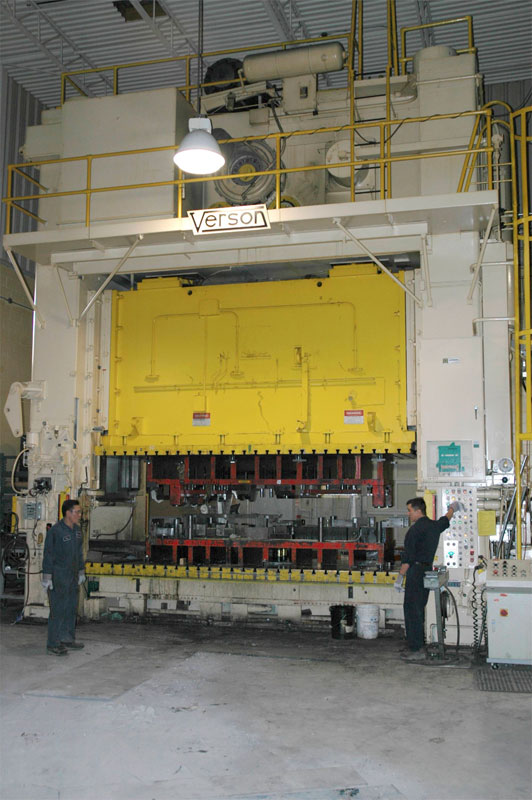

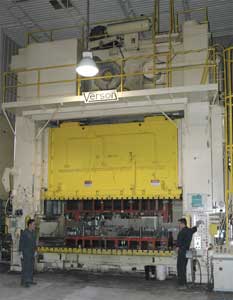

Verson 1400 Ton Press

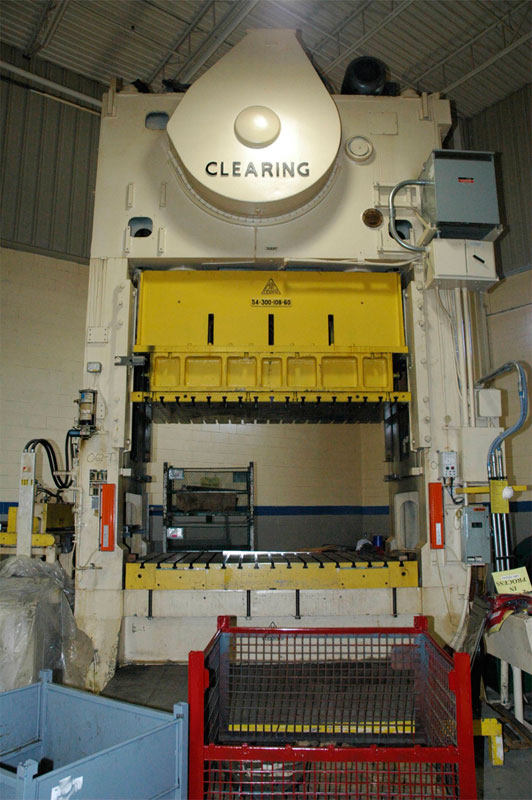

Clearing 300 Ton Press

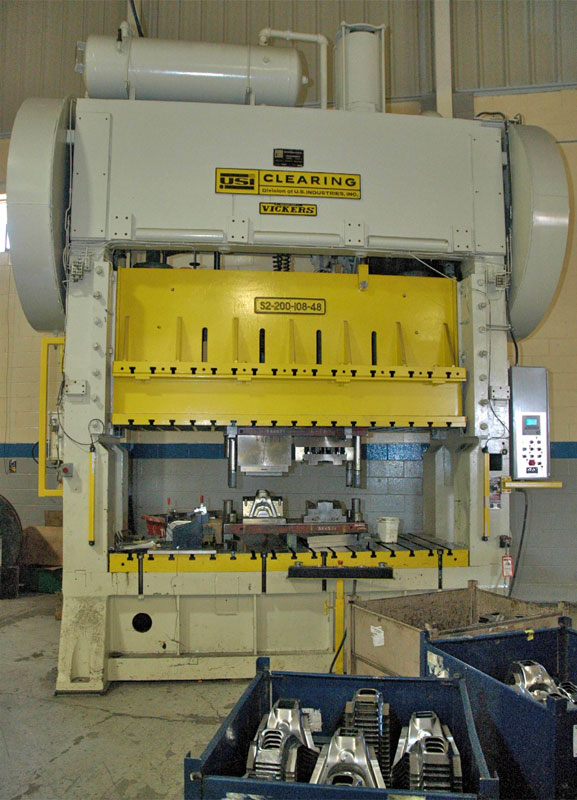

Clearing 200 Ton Press
-

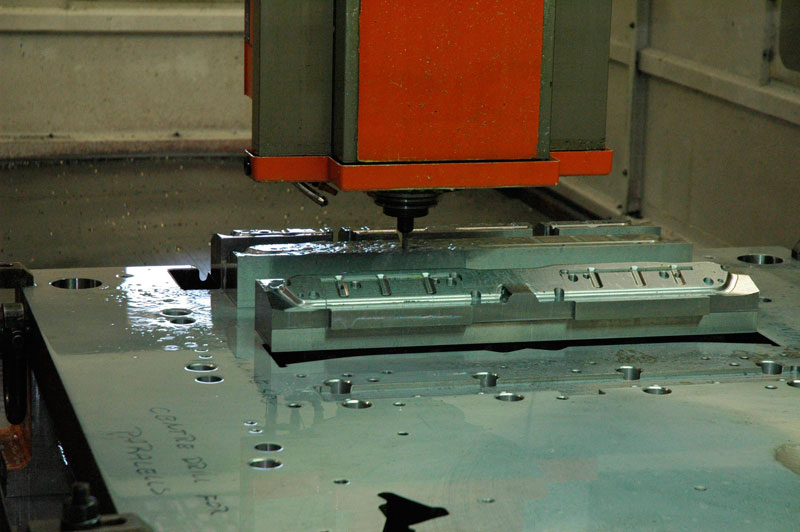

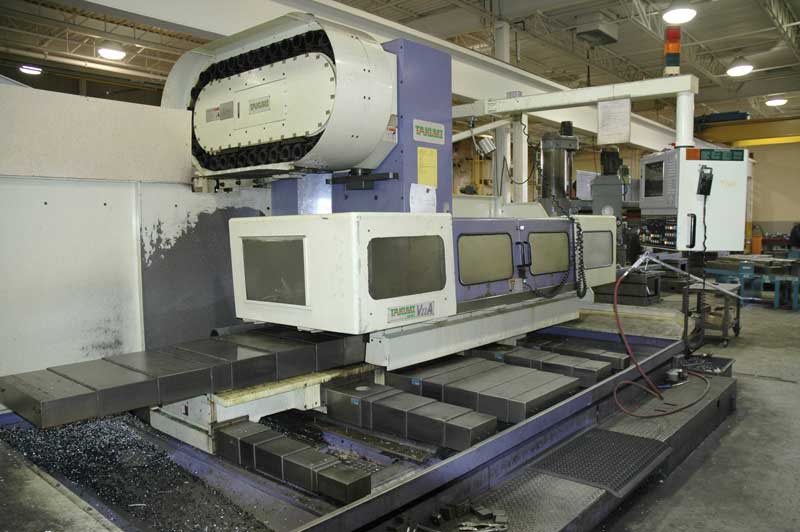

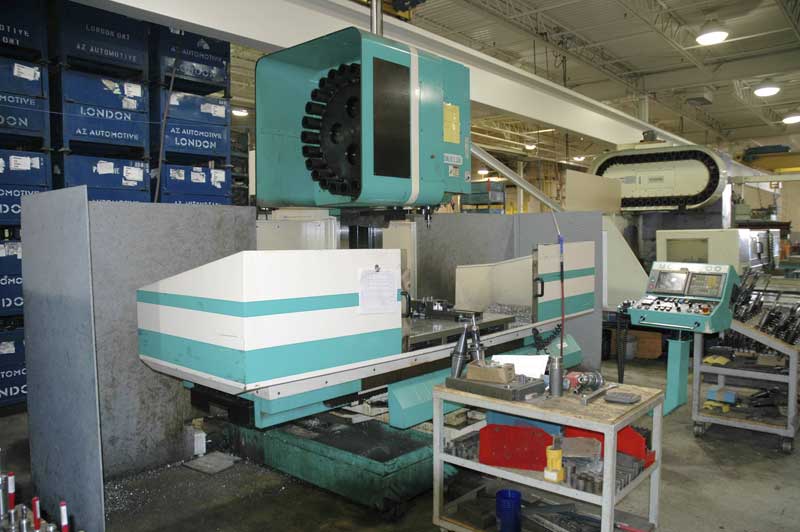

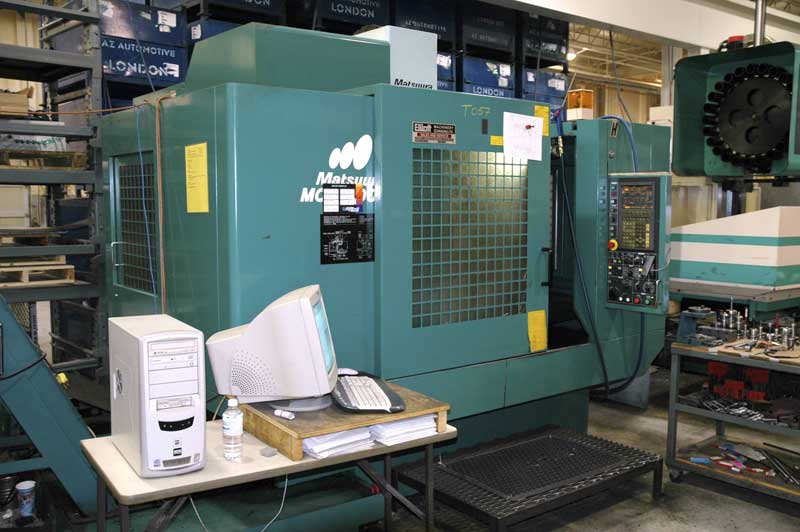

CNC Milling Machines

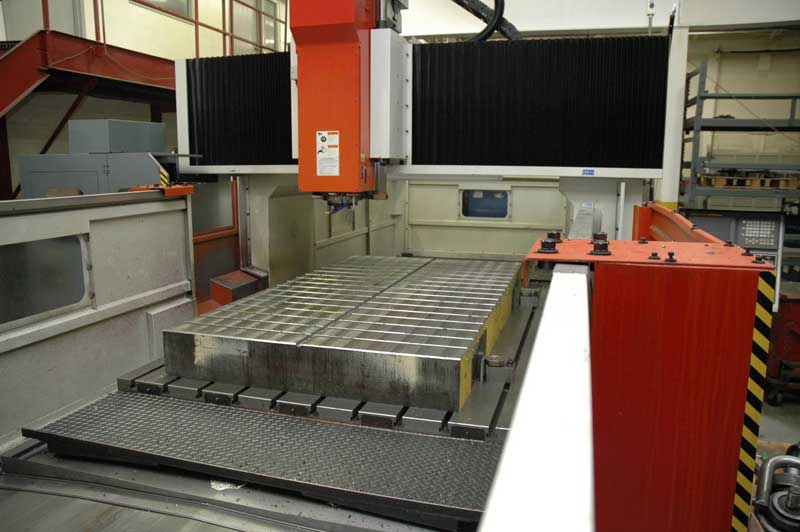

- One double column CNC mill with 84' x 120' table
- One CNC Mill with 36' x 87' table
- Two CNC Mill with 27' x 57' table
- One CNC Mill with 20' x 40' table (for high-speed finishing)
-
Wire EDM Machines

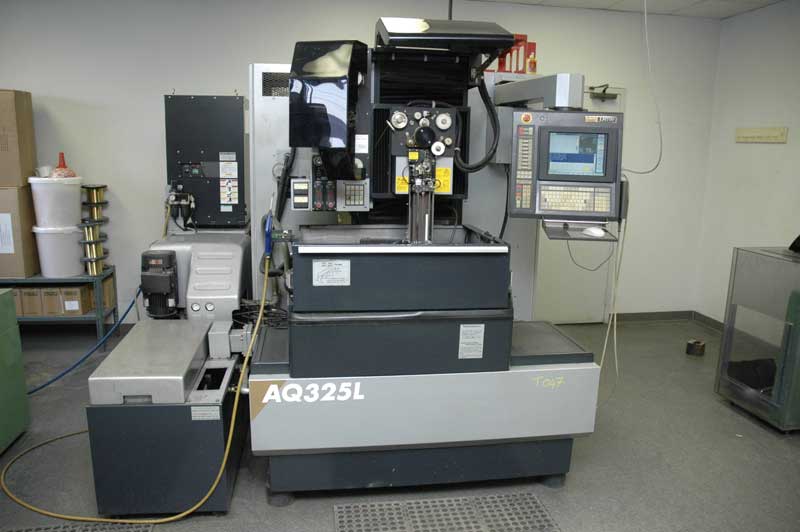

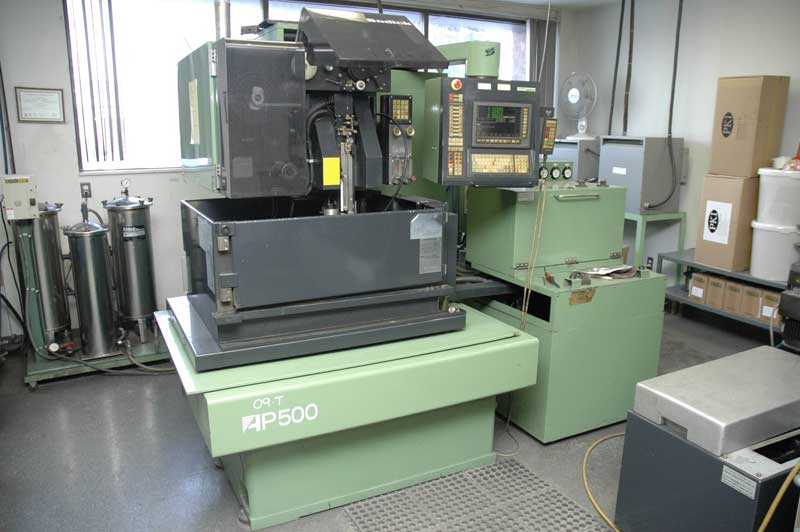

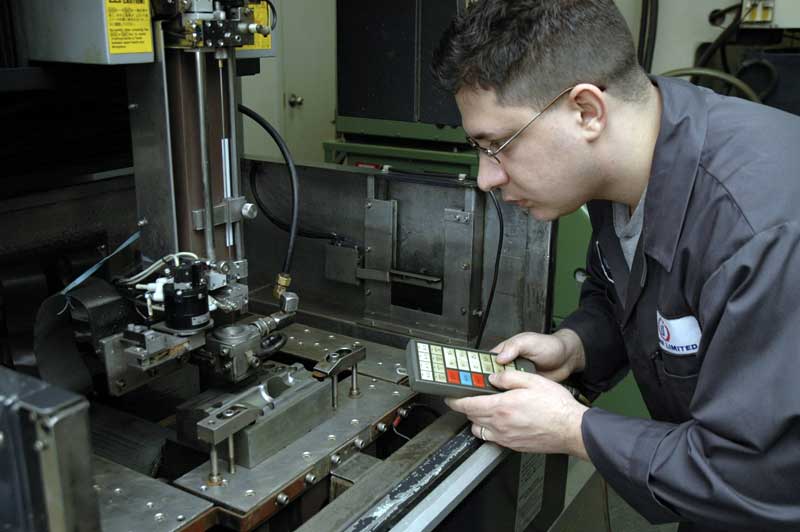

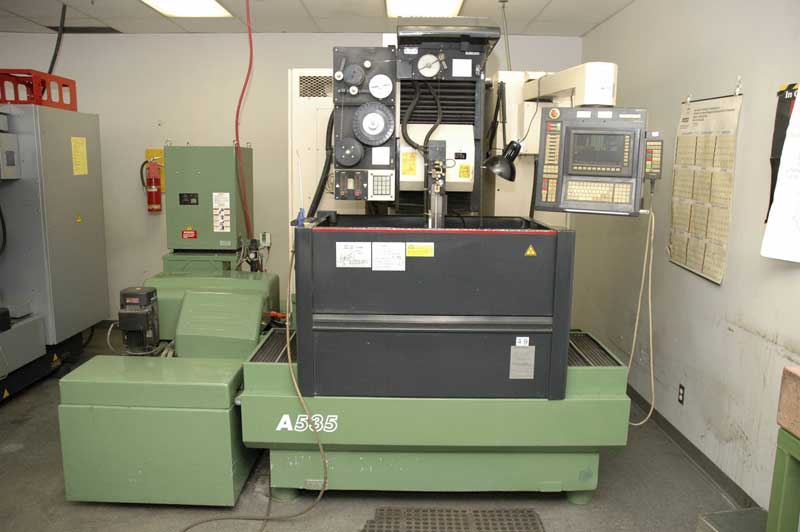

- Four Sodick CNC Wire EDM Machines
-
Milling Machines
- Two Fortworth CS-VBM-5VL 20' x 87'
- One TOS FD40V 22' x 71'
- One Huron KUV55 28' x 64'
- One Jarbe FMI Mill 24' x 72'
- One Universal Mill
- Eight Bridgeport Type Mills with 42' tables
-
Turning Equipment
- One Lathe (24' Swing / 62' Centers)
- One Lathe (24' Swing / 96' Centers)
-
Surface Grinders
- One Blohm 12' x 40' table Auto-feed Grinder
- One Chevalier Type 12' x 24' table Auto-feed Grinder
- One Chevalier Type 16' x 32' table Auto-feed Grinder
- Six Chevalier Type 6' x 12' Grinders
-
Drilling & Cutting Equipment
- Five Radial Arm Drills
- Two Pedestal Drills
- One horizontal Band Saw
- Three vertical power band saws
- One Start-rite Band Saw
-

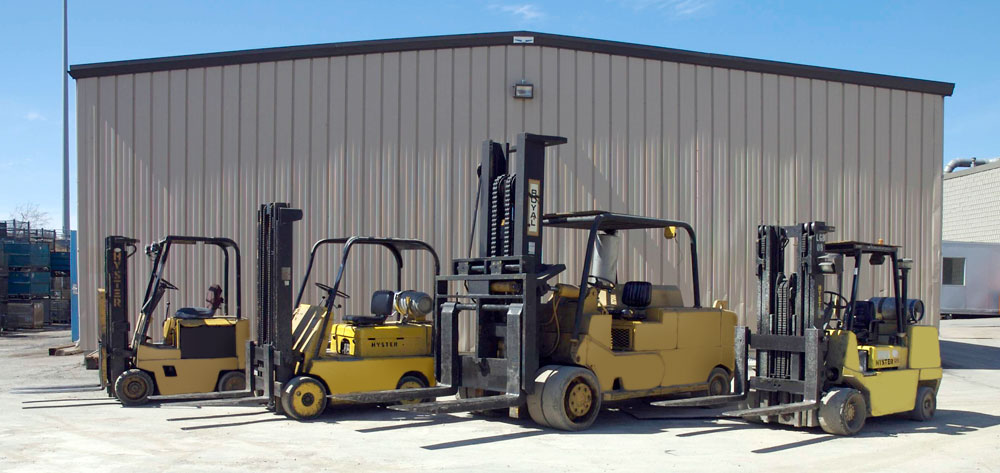

Forklifts
- 4,000, 6,000, 12,000, 25,000, 30,000 and 40,000 lbs capacity
-
Trucks

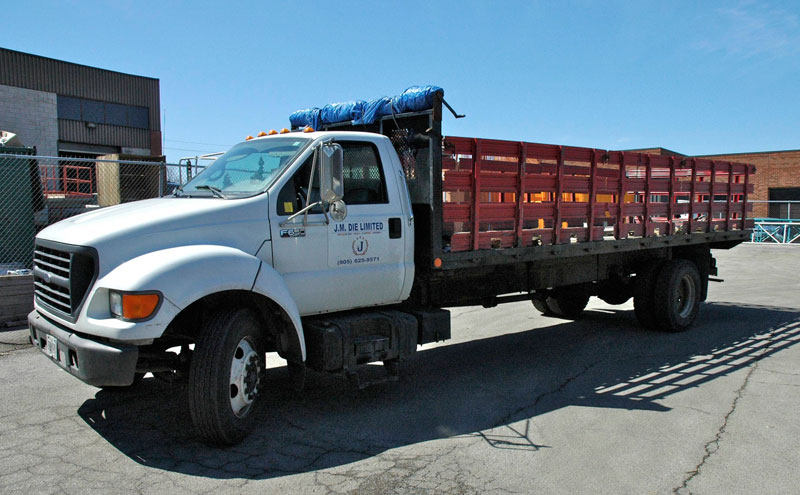

- Ford F650 Diesel Flat Bed Truck
-
CMM Equipment
- One Mitutoyo BRT 504 (191-208) CNC Co-ordinate Measuring Machine
-
Engineering & Design
- In-house designing and engineering services and support
- VISI
- AutoCAD V14.01
- CadKey V21.5
- MasterCAM V9.1 CNC
- MasterCAM V9.0 EDM
